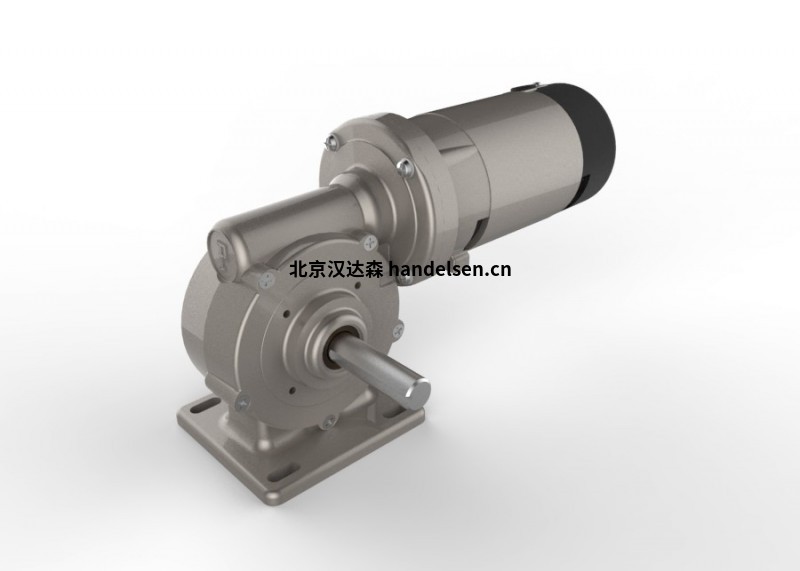

Parvalux直流永磁刷齿轮电机PM1-LHB PMDC 电机系列
Parvalux直流永磁刷齿轮电机PM1-LHB PMDC 电机系列
刷齿轮电机系列。我们提供从标准"选项"的多个级别的定制，如轴变化、输出法兰选项、各种电缆长度、制动器、编码器、油漆表面处理和接线盒，以及完整的定制解决方案，包括整合驱动链其他组件的能力。
电机类型 Pmdc
变速箱 右角
转 矩 1.2 -10.4 牛米
速度 25 - 780 RPM
权力 45 - 200 瓦
制动 是的
电容器尺寸 不
轴直径 20 最大值
轴功能 平， 孔， 空心轴， 钥匙道
轴材料 钢/不锈钢
轴输出 单次或双次根据请求结束
接线盒 是的
接线盒位置 在上面
电压 12DC - 220DC
重量 3.81公斤
比 9/12/15/20/25/40/60
极 不
相 不
油漆 不
噪音水平 不
安装 不
IP 等级 IP21
绝缘类 F
外壳材料 压铸，锌合金
齿轮材料 青铜/复合
框架类型 帕瓦卢克斯框架
编码 是的
外壳 通风/封闭
效率 不
效率等级 不
占空比 续
当前 *联系负载电流的销售支持
连接 飞行引线 300mm/接线盒连接
认证 不
parvalux成立于1947年，作为英国最早的分马力电机的制造企业之一，Parvalux为客户提供世界上最广泛和可靠的定制直流和交流电机而获得了良好的声誉。Parvalux在销售和生产电机和齿轮箱上不断加速全球化。
