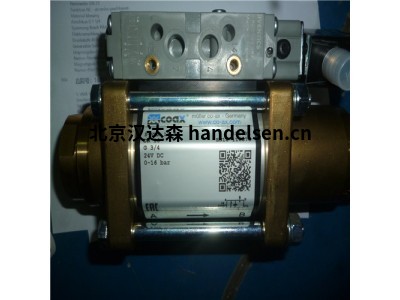

德国CO-AX认证阀门MK / FK 20 DVGW
德国CO-AX认证阀门MK / FK 20 DVGW
端口 螺纹 G 3/4 - G 1 1/4
法兰 PN 40
功能 NC
压力范围 0 - 40 bar
KV值 7,4 m³/h
介质 按G260标准的易燃气体
流向 A B 如标注所示
开关周期 150 1/min
开关时间 打开 110 ms
关闭 110 ms
介质温度 DC -15 °C — +80 °C
AC -15 °C — +80 °C
环境温度 DC -15 °C — +80 °C
AC -15 °C — +80 °C
重量 MK 5,5 kg
FK 7,5 kg
标称电压 Un 24 V DC
Un 230 V 40-60 Hz AC
驱动 DC 直流电磁铁
AC 内置式整流器的直流电磁铁
绝缘等级 H 180 °C
防护等级 IP65
负载率 ED 100%
连接 按DIN EN175301-803标准的插头, 形式A 4个位置X90°, 电线直径 6-8 mm
阀门的设计是基于介质和工况的要求.这些因素可能导致设计、密封材料和特性与通用参数表上的规格有所不同.
公司简介
一切始于1960年的开创性工作,发明了第一个同轴阀-用于应对高压的创新性解决方案。从那时起,我们与我们的四个品牌在极致世界中定居。极其创新。极其耐用可靠。极其胜任有价值。您可以信任,毫不妥协的制造质量。
金石宇#157-1149-6495;QQ-285-059-0587
Coax一直是全球企业独特设计和制造同轴阀技术的创新领导者,基于德国Forchtenberg公司,该公司已从最初的最初成长为当今阀门技术的行业标准。主要产品包括:Coax阀、Coax液压阀、Coax电磁阀、Coax电磁脉冲阀、Coax三通阀、Coax压力控制阀、Coax冷却液阀、Coax气动控制阀、Coax调节阀等,将其先进的阀门专业知识拓展到真空、气体、液体、胶状、研磨性、污染和侵略性介质中。今天,maller Co-Axag继续扩大其国际业务,为全球客户和行业提供其在过去50年历史中保持的卓越的客户服务专注。
金石宇#157-1149-6495;QQ-285-059-0587
主要型号:
co-ax MK10
co-ax MK15/FK15
co-ax MK20/FK20
co-ax MK25/FK25
co-ax MK32/FK32
co-ax MK10
co-ax MK15
co-ax MK20
co-ax MK25
co-ax MK32
co-ax MK40
co-ax MK50
co-ax FK15
co-ax FK20
co-ax FK25
co-ax FK32
co-ax FK40
co-ax FK50
co-ax FK65
co-ax FK80
金石宇#157-1149-6495
QQ-285-059-0587
co-ax MK10DR
co-ax MK15DR
co-ax MK20DR
co-ax MK25DR
co-ax MK32DR
co-ax MK40DR
co-ax MK50DR
co-ax FK15DR
co-ax FK20DR
co-ax FK25DR
co-ax FK32DR
co-ax FK40DR
co-ax FK50DR
co-ax FK65DR
co-ax FK80DR
co-ax CFM08
co-ax MCF08
co-ax VMK10
co-ax VMK15
co-ax VMK20
co-ax VMK25
co-ax VMK32
co-ax VMK40
co-ax VMK50
co-ax VFK15
co-ax VFK20
co-ax VFK25
co-ax VFK32
co-ax VFK40
co-ax VFK50
co-ax VMK10DR
co-ax VMK15DR
co-ax VMK20DR
co-ax VMK25DR
co-ax VMK32DR
co-ax VMK40DR
co-ax VMK50DR
co-ax VFK15DR
co-ax VFK20DR
co-ax VFK25DR
co-ax VFK32DR
co-ax VFK40DR
co-ax VFK50DR
co-ax VSV-M40
co-ax VSV-M50
co-ax VSV-F40
co-ax VSV-F50
co-ax VSV-F65
co-ax VSV-F80
co-ax VSV-F100
co-ax VSV-F125
co-ax VSV-F150
co-ax VSV-F200
co-ax VSV-F250
金石宇#157-1149-6495
QQ-285-059-0587
co-ax VSV-M40DR
co-ax VSV-M50DR
co-ax VSV-F40DR
co-ax VSV-F50DR
co-ax VSV-F65DR
co-ax VSV-F80DR
co-ax VSV-F100DR
co-ax VSV-F125DR
co-ax VSV-F150DR
co-ax FCF-K65
co-ax FCF-K80
co-ax FCF-K100
co-ax FCF-K125
co-ax FCF65
德国CO-AX认证阀门MK / FK 20 DVGW
