专业销售alesa Nutex圆锯片

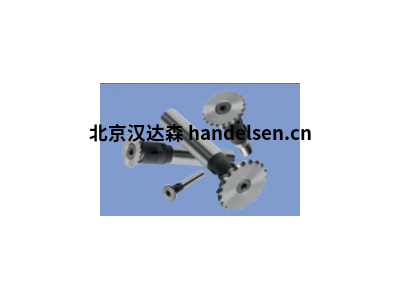

　　圆锯片和刀架在一个刀具中的非凡组合体现了Nutex、Nutex Mini和Nutex Plus系统。使用此工具，可以在CNC中心上进行加工，而无需将固定件伸出工具面。

祁佳强 QQ：2850590582   手机：17744536447 电话：010-64714988-216 传真：010-64714988-668 邮件：tk5@handelsen.cn

　　Nutex/Nutex Mini：

　　如果没有标准宽度或标准齿可以

　　应用时，齿数和宽度

　　可以通过以下方式适应您的要求

　　在“数据表”中

　　锯有高速钢和硬质合金星形，宽度为0.2 mm。

　　以下支架可用：圆柱形

　　轴、螺纹轴或标准刀架。

　　所有Nutex支架均可安装在标准支架上。支架配备有

　　内部润滑孔。

　　根据客户要求，该工具可与

　　一种硬质材料涂层(PVD)，允许

　　实现更长的刀具寿命。

　　Nutex Plus：

　　Nutex Plus具有3个切削刃，可组合

　　侧铣刀的优点和

　　Nutex锯片系统的特点。

　　Nutex Plus拥有3条切割边，是

　　制作深槽的理想工具。

　　经验证的弯曲齿形保证了

　　良好的切屑流动性。

　　驱动销确保了完美的扭矩传输。

　　所有支架都允许内部冷却。

　　如有必要，可从两个方向进入锯

　　通过冷却液加注润滑剂的侧面

　　扩散环。

　　我们建议在锯切过程中使用三(3±0.5)个齿。此外，请按照附加说明进行操作

　　刀架的同心度应

　　be<0.01 mm，尤其是在延伸处

　　大于3 x D

　　-使用带有内部冷却液的刀架

　　供给

　　-乳化液>8%，尤其是不锈钢合金

　　(材料分类2和5)

　　-基于hm表和fz公式计算的进给率(每齿英尺)

　　-对于齿形A，B&B使用每个齿

　　用于进给速度计算

　　-对于齿形Bw和C，应用一半

　　用于计算进给率的齿数

　　-对于宽度小于1mm的锯;Bw–牙齿类型

　　不能接地

　　-如果节距必须小于2 mm;

　　A–必须使用齿形类型

　　-通过振动，作为第一反应，我们建议将切割速度Vc降至

　　李敏。

　　-适用于不锈钢(材料)

　　第二及五级),;锯必须有涂层

　　(含TiAlN的高速钢，含AlCrN的碳化物)

　　-标准刀具上的切削刃几何形状非常适合拉伸材料

　　强度高达800-1000 N/mm2

　　，通过拉伸

　　强度>1200 N/mm2

　　尖端

　　必须调整几何图形

　　-硬质合金Nutex和DIN锯必须抛光

　　适用于软质或未时效的铝合金。这些合金的表面容易腐蚀

　　粘在未抛光的锯上会导致

　　表面质量差

　　-对于铝铸件(>6%Si)，我们建议

　　涂层“DLC-H”


Nutex Mini HSS，标准齿

TiAlN涂层

　　Part No d1 mm b mm b2 mm Slot depth mm d2 mm d3 mm Holder 6044. _ _ _ _ 6042.0136 15 0.50 5 20 B 2.0 5 9.85 .0400, .0410, .0420, .0500 6042.0141 15 1.00 5 20 Bw 2.0 5 9.85 .0400, .0410, .0420, .0500 6042.0146 15 1.50 5 20 Bw 2.0 5 9.85 .0400, .0410, .0420, .0500 6042.0149 15 2.00 5 20 Bw 2.0 5 9.85 .0400, .0410, .0420, .0500 6042.0196 20 0.50 5 18 B 4.5 5 9.85 .0400, .0410, .0420, .0500 6042.0201 20 1.00 5 18 Bw 4.5 5 9.85 .0400, .0410, .0420, .0500 6042.0206 20 1.50 5 18 Bw 4.5 5 9.85 .0400, .0410, .0420, .0500 6042.0209 20 2.00 5 18 Bw 4.5 5 9.85 .0400, .0410, .0420, .0500 6042.0211 20 2.50 5 18 Bw 4.5 5 9.85 .0400, .0410, .0420, .0500 6042.0316 25 0.50 5 16 B 7.0 5 9.85 .0400, .0410, .0420, .0500 6042.0321 25 1.00 5 16 Bw 7.0 5 9.85 .0400, .0410, .0420, .0500 6042.0326 25 1.50 5 16 Bw 7.0 5 9.85 .0400, .0410, .0420, .0500 6042.0329 25 2.00 5 16 Bw 7.0 5 9.85 .0400, .0410, .0420, .0500 6042.0331 25 2.50 5 16 Bw 7.0 5 9.85 .0400, .0410, .0420, .0500 6042.0376 32 0.50 5 14 B 10.5 5 9.85 .0400, .0410, .0420, .0500 6042.0381 32 1.00 5 14 Bw 10.5 5 9.85 .0400, .0410, .0420, .0500 6042.0386 32 1.50 5 14 Bw 10.5 5 9.85 .0400, .0410, .0420, .0500 6042.0389 32 2.00 5 14 Bw 10.5 5 9.85 .0400, .0410, .0420, .0500 6042.0391 32 2.50 5 14 Bw 10.5 5 9.85 .0400, .0410, .0420, .0500 6042.0393 32 3.00 5 14 Bw 10.5 5 9.85 .0400, .0410, .0420, .0500


Nutex迷你硬质合金，标准齿

镀铝

Part No d1 mm b mm b2 mm Slot depth mm d2 mm d3 mm Holder 6044. _ _ _ _ 6342.0136 15 0.50 5 20 B 2.0 5 9.85 .0400, .0410, .0420, .0500 6342.0141 15 1.00 5 20 Bw 2.0 5 9.85 .0400, .0410, .0420, .0500 6342.0146 15 1.50 5 20 Bw 2.0 5 9.85 .0400, .0410, .0420, .0500 6342.0149 15 2.00 5 20 Bw 2.0 5 9.85 .0400, .0410, .0420, .0500 6342.0196 20 0.50 5 18 B 4.5 5 9.85 .0400, .0410, .0420, .0500 6342.0201 20 1.00 5 18 Bw 4.5 5 9.85 .0400, .0410, .0420, .0500 6342.0206 20 1.50 5 18 Bw 4.5 5 9.85 .0400, .0410, .0420, .0500 6342.0209 20 2.00 5 18 Bw 4.5 5 9.85 .0400, .0410, .0420, .0500 6342.0211 20 2.50 5 18 Bw 4.5 5 9.85 .0400, .0410, .0420, .0500 6342.0316 25 0.50 5 16 B 7.0 5 9.85 .0400, .0410, .0420, .0500 6342.0321 25 1.00 5 16 Bw 7.0 5 9.85 .0400, .0410, .0420, .0500 6342.0326 25 1.50 5 16 Bw 7.0 5 9.85 .0400, .0410, .0420, .0500 6342.0329 *) 25 2.00 5 16 Bw 7.0 5 9.85 .0400, .0410, .0420, .0500 6342.0331 *) 25 2.50 5 16 Bw 7.0 5 9.85 .0400, .0410, .0420, .0500 6342.0376 32 0.50 5 14 B 10.5 5 9.85 .0400, .0410, .0420, .0500 6342.0381 32 1.00 5 14 Bw 10.5 5 9.85 .0400, .0410, .0420, .0500 6342.0386 32 1.50 5 14 Bw 10.5 5 9.85 .0400, .0410, .0420, .0500 6342.0389 *) 32 2.00 5 14 Bw 10.5 5 9.85 .0400, .0410, .0420, .0500 6342.0391 *) 32 2.50 5 14 Bw 10.5 5 9.85 .0400, .0410, .0420, .0500 6342.0393 *) 32 3.00 5 14 Bw 10.5 5 9.85 .0400, .0410, .0420, .0500

Nutex Mini HSS，单齿

无涂层
Part No d1 mm b mm b2 mm Slot depth mm d2 mm d3 mm Holder 6044. _ _ _ _ 6041.0132 15 0.25 5 2.0 5 9.85 .0400, .0410, .0420, .0500 6041.0136 15 0.50 5 2.0 5 9.85 .0400, .0410, .0420, .0500 6041.0140 °) 15 0.20 – 0.99 5 2.0 5 9.85 .0400, .0410, .0420, .0500 6041.0141 15 1.00 5 2.0 5 9.85 .0400, .0410, .0420, .0500 6041.0146 15 1.50 5 2.0 5 9.85 .0400, .0410, .0420, .0500 6041.0148 °) 15 1.01 – 1.99 5 2.0 5 9.85 .0400, .0410, .0420, .0500 6041.0149 15 2.00 5 2.0 5 9.85 .0400, .0410, .0420, .0500 6041.0192 20 0.25 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6041.0196 20 0.50 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6041.0200 °) 20 0.20 – 0.99 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6041.0201 20 1.00 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6041.0206 20 1.50 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6041.0209 20 2.00 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6041.0210 °) 20 1.01 – 2.49 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6041.0211 20 2.50 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6041.0312 25 0.25 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6041.0316 25 0.50 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6041.0320 °) 25 0.25 – 0.99 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6041.0321 25 1.00 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6041.0326 25 1.50 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6041.0329 25 2.00 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6041.0330 °) 25 1.01 – 2.49 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6041.0331 25 2.50 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6041.0376 32 0.50 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6041.0380 °) 32 0.30 – 0.99 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6041.0381 32 1.00 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6041.0386 32 1.50 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6041.0388 °) 32 1.01 – 1.99 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6041.0389 32 2.00 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6041.0391 32 2.50 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6041.0392 °) 32 2.01 – 2.99 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6041.0393 32 3.00 5 10.5 5 9.85 .0400, .0410, .0420, .0500

Nutex微型硬质合金，独立齿

无涂层
Part No d1 mm b mm b2 mm Slot depth mm d2 mm d3 mm Holder 6044. _ _ _ _ 6341.0135 °) 15 0.20 – 0.49 5 2.0 5 9.85 .0400, .0410, .0420, .0500 6341.0136 15 0.50 5 2.0 5 9.85 .0400, .0410, .0420, .0500 6341.0140 °) 15 0.51 – 0.99 5 2.0 5 9.85 .0400, .0410, .0420, .0500 6341.0141 15 1.00 5 2.0 5 9.85 .0400, .0410, .0420, .0500 6341.0145 °) 15 1.01 – 1.49 5 2.0 5 9.85 .0400, .0410, .0420, .0500 6341.0146 15 1.50 5 2.0 5 9.85 .0400, .0410, .0420, .0500 6341.0148 °) 15 1.51 – 1.99 5 2.0 5 9.85 .0400, .0410, .0420, .0500 6341.0149 15 2.00 5 2.0 5 9.85 .0400, .0410, .0420, .0500 6341.0195 °) 20 0.20 – 0.49 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6341.0196 20 0.50 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6341.0200 °) 20 0.51 – 0.99 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6341.0201 20 1.00 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6341.0205 °) 20 1.01 – 1.49 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6341.0206 20 1.50 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6341.0208 °) 20 1.51 – 1.99 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6341.0209 20 2.00 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6341.0210 °) 20 2.01 – 2.49 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6341.0211 20 2.50 5 4.5 5 9.85 .0400, .0410, .0420, .0500 6341.0315 °) 25 0.25 – 0.49 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6341.0316 25 0.50 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6341.0320 °) 25 0.51 – 0.99 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6341.0321 25 1.00 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6341.0325 °) 25 1.01 – 1.49 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6341.0326 25 1.50 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6341.0328 °) *) 25 1.51 – 1.99 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6341.0329 *) 25 2.00 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6341.0330 °) *) 25 2.01 – 2.49 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6341.0331 *) 25 2.50 5 7.0 5 9.85 .0400, .0410, .0420, .0500 6341.0375 °) 32 0.30 – 0.49 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6341.0376 32 0.50 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6341.0380 °) 32 0.51 – 0.99 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6341.0381 32 1.00 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6341.0385 °) 32 1.01 – 1.49 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6341.0386 32 1.50 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6341.0388 °) *) 32 1.51 – 1.99 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6341.0389 *) 32 2.00 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6341.0390 °) *) 32 2.01 – 2.49 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6341.0391 *) 32 2.50 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6341.0392 °) *) 32 2.51 – 2.99 5 10.5 5 9.85 .0400, .0410, .0420, .0500 6341.0393 *) 32 3.00 5 10.5 5 9.85 .0400, .0410, .0420, .0500

Nutex硬质合金，标准齿

镀铝
Part No d1 mm b mm d2 mm d3 mm l1 mm l2 mm Slot depth mm 6326.0359 20 0.50 8 7.8 50 12 ✓ 16 B 5.5 6326.0369 20 1.00 8 7.8 50 12 ✓ 16 Bw 5.5 6326.0373 20 1.50 8 7.8 50 12 ✓ 16 Bw 5.5 6326.0377 20 2.00 8 7.8 50 12 ✓ 16 Bw 5.5 6326.0459 25 0.50 10 8.8 60 17 ✓ 16 B 7.0 6326.0469 25 1.00 10 8.8 60 17 ✓ 16 Bw 7.0 6326.0473 25 1.50 10 8.8 60 17 ✓ 16 Bw 7.0 6326.0477 25 2.00 10 8.8 60 17 ✓ 16 Bw 7.0 6326.0559 32 0.50 10 9.8 60 18 ✓ 14 B 10.5 6326.0569 32 1.00 10 9.8 60 18 ✓ 14 Bw 10.5 6326.0573 32 1.50 10 9.8 60 18 ✓ 14 Bw 10.5 6326.0577 32 2.00 10 9.8 60 18 ✓ 14 Bw 10.5 6326.0659 40 0.50 12 10.3 72 23.5 ✓ 14 B 13.5 6326.0669 40 1.00 12 10.3 72 23.5 ✓ 14 Bw 13.5 6326.0673 40 1.50 12 10.3 72 23.5 ✓ 14 Bw 13.5 6326.0677 40 2.00 12 10.3 72 23.5 ✓ 14 Bw 13.5 6326.0759 50 0.50 12 11.8 80 33 ✓ 14 B 18.5 6326.0769 50 1.00 12 11.8 80 33 ✓ 14 Bw 18.5 6326.0773 50 1.50 12 11.8 80 33 ✓ 14 Bw 18.5 6326.0777 50 2.00 12 11.8 80 33 ✓ 14 Bw 18.5
